Ever wondered how those trusty drill bits come to be? The journey from raw materials to precisely engineered tools is a fascinating one, involving intricate processes and skilled craftsmanship.
This blog post dives deep into the drill bit manufacturing process, unraveling the steps from selecting the right steel to the final touches that ensure accuracy and durability. Get ready to explore the world of metalworking and discover the secrets behind creating these essential tools.
What Are Drill Bits Made of
Drill bits are manufactured using a variety of materials, each chosen for its specific properties and suitability for different drilling applications. The most common materials include various types of steel, such as:
- High-Speed Steel (HSS): A popular and versatile material known for its good hardness, wear resistance, and ability to withstand higher temperatures compared to carbon steel. It’s commonly used for drilling wood, plastic, and soft metals.
- Carbon Steel: Available in low and high carbon varieties. Low carbon steel is inexpensive and best for soft materials, while high carbon steel offers better durability for wood and some metals but can lose its temper if overheated.
- Cobalt Steel: An alloy of HSS with added cobalt, providing increased hardness and heat resistance. Ideal for drilling tough materials like stainless steel and cast iron.
Beyond steel, other materials and coatings enhance drill bit performance:
- Carbide: An extremely hard and wear-resistant material, often used as tips on drill bits for drilling masonry, tile, and hardened metals. Solid carbide bits are used for demanding applications.
- Diamond: Used as a coating on drill bits designed for drilling very hard and brittle materials like glass, ceramics, and stone.
- Titanium Nitride (TiN) and other coatings: Applied to HSS bits to increase surface hardness, reduce friction, and improve wear resistance, extending the life of the drill bit.
How Are Drill Bits Made
The drill bit manufacturing process is a complex and meticulous undertaking, transforming raw materials into indispensable tools for creating holes in various materials. This journey involves several critical stages, each demanding precision and expertise to ensure the final product meets stringent quality standards.
From the initial selection of high-grade steel to the final surface treatment, every step in drill bit manufacturing contributes to the tool’s strength, sharpness, and longevity, ultimately impacting its performance and efficiency in diverse applications.
Step 1: Material Selection
The foundation of a high-quality drill bit lies in the careful selection of raw materials. Typically, drill bits are made from high-carbon steel, high-speed steel (HSS), cobalt steel, or carbide. Each material offers distinct properties in terms of hardness, wear resistance, and heat resistance, making them suitable for different drilling applications. For instance, HSS bits are a versatile choice for general-purpose drilling, while cobalt steel and carbide bits excel in drilling harder materials and operating at higher temperatures.
The choice of material directly influences the subsequent manufacturing processes and the final characteristics of the drill bit. Factors such as the intended use of the drill bit, the type of material it will be drilling, and the desired lifespan are all carefully considered during this initial stage. Selecting the appropriate raw material is crucial for ensuring the drill bit’s performance, durability, and overall value.
Step 2: Forging
Forging is a crucial step in shaping the basic form of the drill bit. This process typically involves heating the selected material to a high temperature and then using compressive forces to shape it into the desired geometry. Forging aligns the grain structure of the metal, which significantly enhances its strength and toughness, making the drill bit more resistant to fracture and wear during use.
Different forging techniques, such as drop forging or rotary forging, may be employed depending on the size and design of the drill bit. The forging process creates a rough blank that closely resembles the final shape of the drill bit, including the flutes and the shank. This near-net-shape forming reduces the amount of material that needs to be removed in subsequent machining operations, contributing to efficiency and cost-effectiveness.

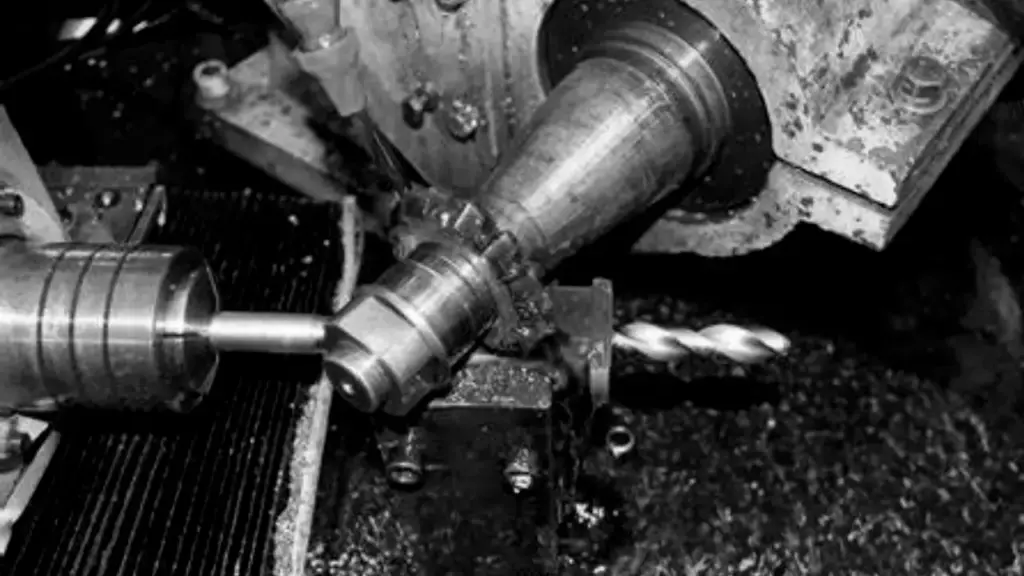

Step 3: Machining
Following the forging process, the drill bit blank undergoes precise machining to achieve the final dimensions and features. This stage involves various cutting operations, such as turning, milling, and grinding, to create the sharp cutting edges, the helical flutes for chip evacuation, and the shank for secure chucking. Computer Numerical Control (CNC) machines are often employed to ensure accuracy and consistency in these intricate operations.
The machining process requires skilled operators and specialized tooling to achieve the tight tolerances and surface finishes necessary for optimal drilling performance. The geometry of the flutes, the angle of the cutting edges, and the overall dimensions of the drill bit are all carefully controlled during this stage to ensure efficient material removal and accurate hole creation.
Step 4: Heat Treatment
Heat treatment is a critical step that significantly enhances the hardness and durability of the drill bit. This process involves carefully controlled heating and cooling cycles to alter the microstructure of the metal. Techniques such as hardening and tempering are commonly used to achieve the desired balance between hardness and toughness. Hardening increases the drill bit’s resistance to wear, while tempering reduces brittleness, making it less likely to fracture under stress.
The specific heat treatment process is tailored to the type of material used to manufacture the drill bit. For example, HSS bits undergo a complex heat treatment process that involves austenitizing at high temperatures followed by rapid quenching and multiple tempering cycles. This ensures that the drill bit can withstand the high temperatures and stresses encountered during high-speed drilling operations.
Step 5: Surface Finishing
Surface finishing is the final stage that prepares the drill bit for use and enhances its performance and longevity. This step may involve various processes such as grinding to achieve a smooth and precise cutting edge, as well as applying surface coatings. Common coatings include titanium nitride (TiN), titanium aluminum nitride (TiAlN), and black oxide, which increase surface hardness, reduce friction, and improve wear resistance.
The quality of the surface finish directly impacts the drill bit’s ability to cut efficiently and produce clean holes. Coatings not only extend the life of the drill bit but also can improve drilling speed and reduce heat generation. The final inspection ensures that the drill bit meets all dimensional and quality specifications before it is packaged and distributed.
How Are Diamond Drill Bits Made
The manufacturing of diamond drill bits is a specialized process that leverages the exceptional hardness of diamonds to create tools capable of drilling through extremely tough materials. This intricate procedure involves carefully embedding diamond particles into a metallic matrix, ensuring their secure placement and optimal exposure for effective cutting. The result is a drill bit with unparalleled abrasion resistance and the ability to tackle materials that conventional drill bits cannot.
Step 1: Material Selection
The process begins with selecting high-quality synthetic or natural diamond grit of specific sizes and shapes, depending on the intended application of the drill bit. These diamond particles provide the cutting action. Simultaneously, a metallic powder matrix, typically composed of materials like tungsten carbide, cobalt, nickel, or a combination thereof, is chosen. This matrix will serve as the binding agent to hold the diamond particles in place and provide structural support.
Step 2: Mixing and Mold Preparation
The selected diamond grit is meticulously mixed with the metallic powder matrix in precise proportions to ensure even distribution. This mixture is then poured into a mold that defines the desired shape and size of the drill bit segment or the entire drill bit, depending on the manufacturing technique. The mold is carefully prepared to ensure the final product meets the required dimensions and tolerances.
Step 3: Sintering or Hot Pressing
The mold containing the diamond-metal mixture is then subjected to high temperature and pressure in a process called sintering or hot pressing. During sintering, the metallic powder particles fuse together, creating a solid matrix that securely bonds the diamond particles. Hot pressing combines heat and pressure simultaneously, often resulting in a denser and stronger bond between the diamonds and the matrix. This step is crucial for the drill bit’s cutting efficiency and longevity.
Step 4: Shaping and Segment Attachment
After sintering or hot pressing, if individual segments were created, they are then brazed or laser-welded onto a steel core or body of the drill bit. For smaller, one-piece diamond drill bits, further shaping may be required to achieve the final geometry, including the creation of coolant channels or other design features. Precision grinding may be employed to ensure accurate dimensions and a smooth finish.
Step 5: Quality Control and Finishing
The final stage involves rigorous quality control checks to ensure the diamond drill bit meets the required specifications for diamond distribution, bond strength, and overall dimensions. The drill bit may undergo additional finishing processes, such as cleaning or the application of protective coatings, before it is ready for packaging and distribution. This meticulous quality assurance guarantees the performance and reliability of the diamond drill bit for demanding drilling applications.
Conclusion
The drill bit manufacturing process is a fascinating journey from raw materials to precise cutting tools. It involves several key stages, including material selection, forging, machining, heat treatment, surface finishing, and quality control, each contributing to the final product’s performance and durability. Understanding this process highlights the engineering and precision required to create effective drill bits.
